CHAPTER VII SORGHUM: Post-harvest Operations

1.2 World Trade

1.3 Primary product

1.4 Secondary and derived product

1.5. Requirements for export and quality assurance

1. Introduction

Sorghum, Sorghum bicolor(L) Moench, is the fifth most important cereal after rice, wheat, maize, and barley. It constitutes the main food grain for over 750 million people who live in the semi-arid tropics of Africa, Asia, and Latin America. The largest group of producers are small-scale subsistence farmers with minimal access to production inputs such as fertiliser(s), pesticides, improved seeds (hybrids or varieties), good soil and water and improved credit facilities for their purchase.

Sorghums have a structure which is broadly similar to that of other cereals (Figure 1). The major components of the grain are the pericarp (outer covering), the testa between pericarp and endosperm (which may or may not be present), the endosperm, and the embryo.

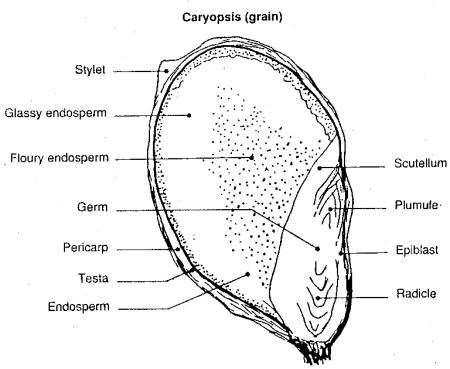

Figure 1: Structure of sorghum grain (after Sautier and O'Deye, 1989)

The endosperm may be corneous (vitreous) or floury, and the testa may contain tannins which affect the nutritional quality of the grain. Tannins are high molecular weight polyphenols (phenolics) which are found in grains with a brown pericarp and pigmented testa. Certain tannins known as condensed tannins, form complexes with proteins and reduce their digestibility. They can also form complexes with the alimentary tract proteases, reducing the digestibility of the proteins in the grain. Despite this negative nutritional effect, high tannin varieties continue to be grown due to their bird and insect resistance, and higher malting potential than white grain varieties. In some traditional foods and beverages, the phenolics of red sorghum give a desired flavour and colour. The negative effects of tannins on nutritional value can partially be overcome by removal of the testa by mechanical dehulling, or by alkaline treatment at the village level (traditionally by using wood ash) (Chantereau and Nicou 1994).

There are many varieties of sorghum ranging in colour from white through red to brown. Traditional varieties are open pollinated from which rural farmers retain seed for planting in the next season. Yields tend to be lower than the modern hybrids which are slowly being introduced. However hybrids are only cost effective when grown with supporting inputs of fertiliser, weed and pest control, and good water management. Commercial production of hybrid seed is a problem in many developing countries, and some rural farmers do not appreciate that harvested hybrid grain cannot be retained for planting the next season. Therefore they find sorghum production from hybrid seed expensive, even though the yields are higher than the land races.

Yields from open-pollinated varieties under rain-fed conditions range from 0.3-1.0 tons / ha. In contrast, hybrids can yield up to 12 t / ha under ideal inputs, soil and water conditions and higher densities of planting. Resource-poor farmers prefer varieties incorporating the characteristics of resistance to insects, disease, drought, birds, and with acceptable yields of both grain for human consumption and fodder for livestock feed. Although yields of traditional varieties are low, they are sustainable under conditions which would make maize production unfeasible or unprofitable. Commercial producers prefer dwarf varieties suitable for harvest by combine.

Grain sorghums are generally grown in regions which are too dry or too hot for successful maize production. They are adapted to the drier climates due to several factors (Bennett et al. 1990):-

The ability to remain dormant during drought and then resume growth;

Leaves roll up as they wilt reducing the area of leaf exposed for transpiration;

Leaves and stalks contain an abundance of waxy coating which protects them from drying;

Sorghum exhibits a low transpiration ratio (kg water required to produce a kg of plant material) e.g. 141 kg for sorghum, 170 kg for maize and 241 kg for wheat;

Sorghums have a large number of fibrous roots that efficiently extract moisture from the soil (the absorption area is about twice that of maize); roots may be up to 2.5m in length;

A large root absorption area and relatively large leaf area;

Sorghums can withstand temperatures above 38 _C, but dry winds coupled with hot weather during pollination reduce yields. Best yields are realised when temperatures during the season are 24-27 _C;

The water requirements for sorghum vary within the range 350-700 mm depending on the length of the growing cycle; short growing cycle is 90 days; long growing cycle, more than 130 days.

Within many semi-arid areas of developing countries, typical temperatures range from 20-38_C with annual rainfall ranging from 300-750 mm. In the USA, hybrid grain sorghums are grown where annual rainfall ranges from 380-640 mm. The growing season is longer than 130 days.

To obtain optimum yields in conditions of good soil fertility, a short growth cycle variety needs between 500 to 600 mm of well distributed rainfall; 650 to 800 mm for an average growth cycle variety; and 950-1100 mm for a long growth cycle variety. Since sorghum is predominantly a rain-fed crop grown by subsistence farmers, yields largely depend on the capacity for drought resistance of the variety used.

Sorghums can tolerate a wide range of soil pH and textures.

1.2 World Trade

Sorghum, apart from being a subsistence crop, is an important commercial and export crop for the United States of America, Australia, and Argentina. In these countries dwarf hybrid varieties are grown and harvested mechanically, predominantly for livestock feed. The major areas of sorghum production are listed in Table 1 (FAO, 1995).

Table 1. World sorghum production by area, yield per hectare and tonnage per region.

Sorghum Production Area (million ha)
	1989-91	1993	1994	1995
World	43.4	43.2	44.8	43.8
Africa	18.5	20.6	23.3	22.0
N C America	6.1	5.2	5.2	5.2
South America	1.4	1.3	1.3	1.0
Asia	16.6	15.4	14.2	14.8
Europe	0.2	0.2	0.1	0.1
Oceania inc. Australia	0.5	0.4	0.5	0.5

Sorghum Production Yield (MT / ha)
	1989-91	1993	1994	1995
World	1.31	1.37	1.36	1.24
Africa	0.76	0.81	0.78	0.79
N C America	3.38	3.50	3.91	3.18
South America	3.71	3.76	4.53	3.51
Asia	1.02	1.19	1.19	1.06
Europe	4.07	4.86	4.34	4.32
Oceania inc. Australia	2.15	1.28	1.90	2.02

Sorghum Production (million MT per region)
	1989-91	1993	1994	1995
World	57.1	59.1	60.7	54.1
Africa	14.0	16.8	18.3	17.4
N C America	20.6	18.2	20.2	16.5
South America	3.6	4.4	3.7	3.0
Asia	17.1	18.2	16.9	15.7
Europe	0.6	0.8	0.6	0.6
Oceania inc. Australia	1.0	0.5	0.9	1.0

The trade in sorghum is small compared with the major grains such as wheat, maize, barley and rice. The main importers of sorghum are Japan, Mexico, the former USSR (CIS) and Venezuela. Within most developing countries, the sorghum crop rarely reaches the market. It is grown for home consumption unless there is a bumper crop, or if cash is needed. The major producers of sorghum for domestic or foreign trade are the USA, Argentina and Australia. Most is used in livestock feed.

The market price for sorghum is a function of its value in terms of its demand, its purpose, and nutritional quality. Livestock feed manufacturers procure feed materials according to a price per nutrient basis. Since the nutritional value of sorghum is broadly 85 percentage - 90 percentage of that of maize (due to the lower digestibility of the nutrients it contains), assuming that both were equally available, sorghum would have lower relative value. In reality, the price of grains has been influenced by political, social and agronomic factors, not always in support of sorghum, and often in support of maize, usually involving a subsidy.

1.3 Primary product

In communities where sorghum is grown as a subsistence crop the main food products prepared include thin and thick porridges, fermented and unfermented breads, lactic and alcoholic beers and beverages, malted flours for brewing, malted porridge mixes and weaning foods. In Kenya and South Africa, there is a small but growing market for pearled sorghum as an alternative to rice. In India, proposals have been made for use of dehulled sorghum within feeding regimes for infants and children (Pushpama, 1987)

Many countries have investigated the options for a composite wheat-sorghum flour but few have found commercial adoption. Sorghum does not contain the elastic protein, gluten, and thus the functional properties of sorghum for wheat-based bread and biscuit type products limits its inclusion level to a practical maximum of 10-15 percentage before changes in the structure of the product can be positively identified. Inclusion is also dependent upon availability of sorghum, appropriate varieties and the relative price of wheat and sorghum at the mill gate.

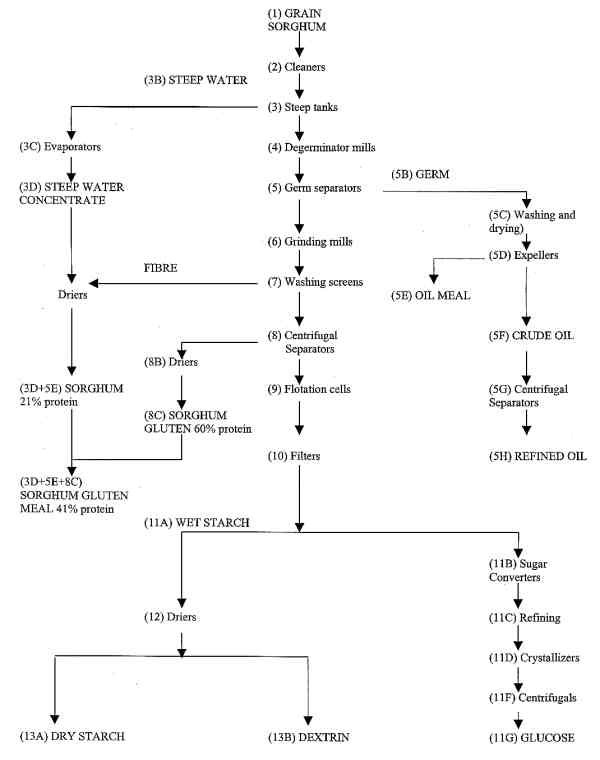

Figure 3: Flow sheet of grain sorghum wet milling (after Watson 1970)

Many urban consumers consider sorghum to be a subsistence crop of low quality. This low social status for the grain constrains its desirability for inclusion in commercial products designed for urban consumers. In regions where the crop is not a staple, it may have low acceptability relative to maize due to its different organoleptic properties - unpleasant colour, aroma, mouthfeel, aftertaste and stomach-feel.

1.4 Secondary and derived product

Brewing

Lager beers: Certain varieties of red sorghums contain active amylases at concentrations suitable for certain brewing applications. For the preparation of commercial lager beers, sorghum malt is not a direct replacement for barley malt since the diastatic power of the sorghum malt is very low and variable compared to that for barley malt. Sorghum is milled for its endosperm grits as a starch source (adjunct) for hydrolysis by malt enzymes to fermentable sugars. Supplementary amylolytic and proteolytic enzymes are necessary to complete the fermentations. (Hallgren, 1995)

Opaque beers: Africa has a tradition of making opaque beers by the use of sorghum as the source of malt and the adjunct, though for commercial brewing maize may often be the source of the adjunct. Opaque beer is a product of a lactic and alcoholic fermentation which is sold in a microbially active state, with a shelf life of only 5-7 days. The principles of the process whether by traditional or commercial methods are illustrated in Figure 4 (Daiber and Taylor, 1995).

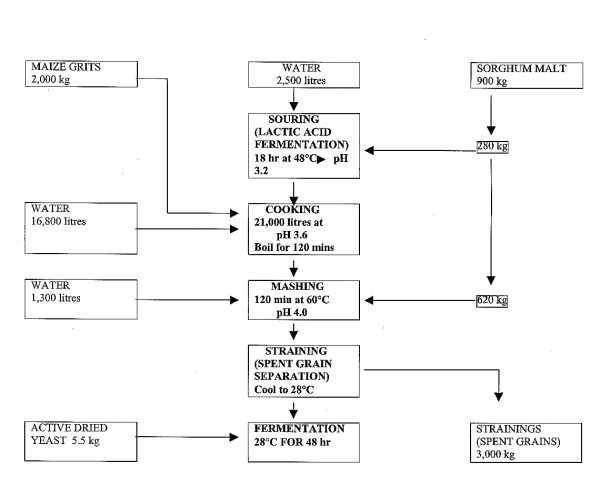

Figure 4: Principles of the production of opaque beer by the Reef-type brewing process.

Sweet sorghum

Certain varieties of sorghum are characterised by the production of high levels of sugar in the stalk. These are known as sweet sorghums and attempts have been made to commercialise their production in the USA, Argentina and Brazil for the extraction of juice for the preparation of sugar syrup for alcohol production by fermentation.

Sorghum in animal feeds:

Livestock feed manufacturers prefer to use grains from white sorghums or low tannin pigmented sorghums due to the effect of tannins on protein digestibility. Sorghum is therefore not a direct replacement for maize in a livestock ration. Sorghum has a lower energy density and protein digestibility compared to maize (Table 6) which is reflected in the price offered for sorghum (NRI, 1988).

Table 6. Comparative data on energy and protein levels for sorghum and maize (as feed)

	Metabolisable energy for ruminants (MJ / kg)	Metabolisable energy for poultry (MJ / kg)	Protein content (%)	Lysine content (%)	Available lysine content (%)
Sorghum	12.4	13.7	11.0	0.27	0.19
Maize	12.1	14.2	9.0	0.27	0.22

Typical upper inclusion limits for sorghum and maize in feeds are;

Sorghum Maize

Poultry feeds 30 percentage 70 percentage

Pig feeds 30 percentage 30 percentage

Dairy feeds 50 percentage 70 percentage

Beef feeds 70 percentage 70 percentage

The above are guideline figures since the inclusion levels will be dependent upon the price and availability of other raw materials providing the desired protein and energy for a balanced diet in relation to expected levels of animal performance.

However, a major reason for low inclusion of sorghum in livestock feeds in developing countries is lack or inconsistency of supply in the market.

1.5. Requirements for export and quality assurance

The Codex Alimentarius Commission has established global standards for sorghum grains under Codex Standard 172-1989. However, individual producing countries have their own standards for internal procurement from farmers or by import. In commercial trading the quality standard for sorghum is agreed between buyer and seller and is usually associated with the intended use of the crop. Nevertheless, the principles of the Codex standard may be included within the specifications.

Summary of Codex Standard 172-1989

The standard applies to sorghum for direct human consumption.

Grains shall not have abnormal odour or taste.

Grains may be white, pink, red, brown orange or yellow or may be a mixture of grains.

Grains must be sound, clean and free from living insects.

Moisture content will not exceed 14.5 percentage; ash not more than 1.5 percentage on dry matter; protein (N x 6.25) not less than 7 percentage on dry matter basis.

Tannins: For whole grains - not to exceed 0.5 percentage on dry matter. For decorticated grains - not to exceed 0.3 percentage on dry matter basis.

Hygiene

Grain should be prepared in accordance with the Recommended International Code of Practice, General Principles of Food Hygiene (CAP / RCP 1-1969, Rev. 2, 1985).

Free from micro-organisms, substances originating from micro-organisms, or other poisonous substances in amounts which may represent a hazard to health.

Packaging

Packed in containers (including sacks) which will safeguard the hygienic, nutritional and technological qualities of the grain.

A summary of general tolerances for grain defects is given in Table 2.

Table 2. Tolerances for defects in sorghum

Defect	Limit	Definition
Blemished grains including diseased grains	3.0% 0.5%	Insect or vermin damaged. Sprouted, diseased, frost damaged or other. Evidence of decay, mould or bacterial decomposition.
Broken kernels	5.0%	Pieces which pass through a screen with round holes 1.8 mm in diameter
Other grains	1.0%	Non-sorghum - legumes, pulses, other edible cereals.
Foreign matter including inorganic matter	2.0% 0.55% (inorganic matter)	All organic and inorganic material which is not sorghum, broken kernels, other grains and filth. Includes loose sorghum seedcoats.
Filth	0.1%	Impurities of animal origin.
Toxic or noxious seeds	Free from amounts which may be a hazard to health.
Contaminants	Free from heavy metals in amounts hazardous to health.
