E.J. DaSilva
Division of Scientific Research and Higher Education, Unesco, Paris, France
In recent years, biogas systems have attracted considerable attention as a promising approach to decentralized rural development. Developed and developing countries and several international organizations have shown interest in biogas systems with respect to various objectives: a renewable source of energy, biofertilizer, waste recycling, rural development, public health and hygiene, pollution control, environmental management, appropriate technology, and technical cooperation. Within the context of the UNEP/Unesco/ICRO microbiology programme, which is sponsored jointly by the United Nations Environment Programme, Unesco, and the International Cell Research Organization, several workshops have already been held in Yogyakarta, Manila, Mexico City, Singapore, and Bangkok, in an attempt to catalyze the applications of this acknowledged low-cost, nonwaste-producing technology that is increasingly being deployed to manage the environment and to ameliorate the search for substitute sources of fuel, food, and fertilizer (1 - 4). Early in 1979, in joint co" operation with IFIAS and ESCAP/UNIDO, a workshop will be held at Bandung to deal specifically with village micro" biology and the integrated biogas farming system. In this context, it is hoped that this activity on "The State of the Art of Bioconversion of Organic Residues for Rural Communities," a UN University joint World Hunger-Natural Resources activity receiving Unesco and UNEP/Unesco/ ICRO Panel support, will be making a significant contribution to the application of bioconversion processes for rural communities.
The utilization of microbial activity to treat agricultural, industrial, and domestic wastes has been common practice for a half century. Treatment includes the aerobic, activated sludge process and the anaerobic or methane fermentation method; the latter is simple, does not require imported know-how or components, is suited to small family or village-scale digestion, and is the only process utilizing waste as a valuable resource. Of great importance to the developing countries, the use of methane has, until recently, been restricted because of public antipathy or because other, cheaper energy sources were available. But, as can be seen from Tables 1 and 2, biogas technology today is a sufficiently significant producer of energy to command the attention of a fair number of countries (5) and agencies.
TABLE 1. Promotion of Research and Development Related to Use of Biogas
| Place | Sponsors of biogas research and development | Number of plants | Use of residual material and general remarks |
| Bangladesh | Central government; Bangladesh
Academy for Rural Development | 20
(under construction) | Meet fertilizer needs; develop co- operative or family-size biogas plants in rural area |
| China | Local authorities | 200,000(Szechuan) | Family-size plants |
| Cook Islands | Central government | 1 (Roratonga) | Integrated cattle farm with piggery pens; promote growth of algae and fish for production of protein |
| Ecuador | Family co-operative effort in Iluman | Development of a biogas reactor to provide fuel for individual homes and a community bakery | |
| Fiji | Private enterprise | 10 | Rural development |
| India | Government of India: All-India Co-ordinated Project | 36,000 | Target 100,000 units by 1978 |
| Delhi | Delhi Development Authority
Delhi Dairy Corporation Indian Agricultural Research Institute Indian Institute of Technology (B.E.R.G.) | Research on biogas reactor: design,
construction, and capacity Pioneer in biogas research and development Research on biodegradable cellulosic substrates | |
| Haryana | National Dairy
Research Institute,
Karnal Mutuka Farm, Hatari village | 12 | 12 plants (100 to
200 cu.ft.) operating
in Sonepat and Gurgaon districts |
| Uttar Pradesh | Gobar Gas Research Station,
Ajitmal National Sugon Institute, Kanpur National Livestock Development Research and Extension Institute, | Pioneer in
biogas research and
development Research on bagasse as substrate 10 plants (60 to 500 cu.ft.) operating in the Deviapur and Kashipur districts Kashipur | |
| Gajarat | Tulsi Shyam Temple, Una | 3,000 cu.ft. plant in use for supply of
electricity only | |
| Maharashtra | National
Environmental Engineering
Institute, Nagpur Khadi and Village Industries Commission Gandhi Samarak Nidhi, Pune National Dairy Research Institute, Bombay (Regional Station) Indian Institute of Technology, Bombay (see also under Tamil Nadu) | Research on
insulator materials to
minimize heat losses in winter months Pioneer in biogas research and development 55 plants in operation using night soil Has successfully experimented on "integrated farming system" that yields cattle fodder, fruits and vegetables Deployment of biogas for diesel engines | |
| Andhra
Pradesh | Rural Electrification
Corporation,
Karimnagar | 4,500 cu.ft plant for community
development with technical assistance from Council of Scientific and Industrial Research | |
| Orissa | Central Rice
Research Institute,
Cuttack | Biogas production from Azolla crops | |
| Tamil Nadu | Indian Institute of Technology,
Madras (in collaboration with I.I.T., Bombay and Indian Oil Research Centre, Faridabad) Shri A.M.M. Murugappa Chettiar Research Centre | Research in the use of biogas in
petrol
kerosene and diesel engines Development of low-cost materials for biogas reactors | |
| Pondicherry | Auroville Ashram | Work in progress on inclusion of algae
in biogas system | |
| Indonesia | Dian Desa
Indonesian Board of Voluntary Services, Development Technology Centre, I.T.B., Bandung | 12 | Intensification of
preliminary
programme;regional network proposed for training and operation of biogas plant processes |
| Japan | Ministry of
International Trade
and Industry (MITI); National Institute of Animal Husbandry; Bioconversion Committee of the Agency of Industrial Science and Technology; M/S Hitachi Plant Construction Fermentation Research Institute, Inage | Pollution
control biogas digestion
processes involve the use of thermophilic micro-organisms | |
| Korea (Republic of) | Organization of Rural Development;
Institute of Agricultural Engineering and Utilization, Suweon; Korea-U.K. Farm Machinery Training Project | 29,400 | Production of
food and fertilizer;
55,000 units planned by 1985 |
| Nepal | Development and
Consultancy
Services, Butwal Technical Institute; Energy Research and Development Group; Tribhuvan University | 10 | 200 units planned |
| Philippines | National
Institute of Science and
Technology; National Institute of Animal Husbandry, Maya Farms, Angono | 100 | Supports algal growth in
photosynthetic oxidation ponds; irrigation of vegetable gardens |
| Thailand | Agricultural Economic Dept.,
Sanitation Division, Health Dept., Ministry of Public Health; Mahidol University; Kasetsart University; Applied Scientific Research Corporation of Thailand (MIRCEN - Microbiological Resources Centre) | 225 | 50 digesters planned for every year
since 1975 for cooking and lighting purposes |
| Upper Volta | Services de Recherche et
Applications
Techniques, Société Africaine d'Etudes et de Développement | Research on development of biogas | technology initiated |
| United Kingdom | National Centre for Alternative
Technology, Wales | Working demonstrations on methane
generation | |
| United States | Biogas of Colorado, Inc., Denver | Development of a mobile
demonstration unit to generate biogas for use in rural areas of Colorado. Completed unit in corporates solar temperature control system for use in winter Emphasis is on simplicity of technology. | |
| Sri Lanka | Industrial Development Board
of the
Ministry of Industries | 100 regional
centres planned; Rural
Energy Centre planned with UNEP to meet the basic energy needs of a village community (50 - 200 families) |
Sources: S.K. Subramanian, Bio-Gas Systems in Asia, Management Development Institute, New Delhi, 1977; U.N. Agency documents.
TABLE 2. International Agencies Engaged in Biogas Research, Training, and Development Programmes
| Agency | Area | Remarks |
| Economic and Social Commission
for Asia and the Pacific (ESCAP) | Examination of technological and
economic aspects (ESCAP projects on biogas technology and utilization supported by United Nations Development Programme) | Workshops - Manila, New Delhi,
Bangkok, and (with Government of Netherlands assistance), Fiji |
| FAO | Agro-industrial residue utilization | UNEP/FAO Seminar, "Residue
Utilization - Management of Agricultural and Agro-Industrial Wastes," Rome, 1977; information available in FAO bulletins, compendium of technologies, and world directory of institutions |
| International Cell Research
Organization (ICRO) | Promotion
of research and development See under Unesco and UNEP/ of trained manpower | Unesco/ICRO Panel on Microbiology |
| International Development
Research Centre (IDRC) | Supports research designed to adapt
science and technology to the specific needs of developing countries | IDRC Project Identification Meeting on
"Social and Economic Evaluation of Biogas Technology," Sri Lanka, 1976 |
| International Federation of Institutes
for Advanced Studies (IFIAS) | Identification and promotion of research
through commissioned studies | See under Unesco and UNEP/Unesco
/ICRO Panel on Microbiology |
| Unesco | Promotion of
basic microbiological
research and development of trained manpower | In collaboration
with ICRO training
course on "Waste Recovery by Micro-organisms" Kuala Lumpur, 1972, and with IFIAS, a commissioned study on "Energy Self- Sufficiency - A Feasible Prerequisite for Self-Reliance" |
| UNEP/Unesco/ICRO Panel on
Microbiology in close co- operation with UNEP, Unesco, ICRO, and IFIAS | Promotion of research in low-cost non-
waste- producing microbial technologies and development of trained manpower at established microbiological resources centres (MlRCENs) at Bangkok, Cairo, Nairobi, Porto Aiegre, and Stockholm. Dissemination of information on micro- organisms through the World Data Centre at Brisbane | Training
courses in Indonesia;
Thailand, The Philippines, Republic of Korea, Kenya, Egypt, Mexico, Guatemala, Singapore, Kuwait, New Delhi, etc., on waste conversion and environmental management using microbes |
| United
Nations Environment
Programme (UNEP) | Environmental management and
counteraction of pollution | UNEP Rural Energy Programme -
pilot projects in collaboration with (i) Brace Research Institute, McGill University, Canada: African Rural Energy Centre at Senegal (ii) Oklahoma State University, USA; Asian Rural Energy Research Project, Sri Lanka (iii) Dissemination of information through UNEP International Referral System (IRS) |
| UNICEF | Provision of basic services to children | Studies
on contributions of biogas
systems to village technology and rural development |
| UNIDO | Dissemination of information on biogas | Proposed
project: Biogas Plants -
assistance for the mobilization of existing technology and its transfer and integrated development |
| UNITAR | Provision of specialized training | Seminar on
"Microbial Energy
Conversion," Gottingen, 1976 |
| United Nations University (UNU) | Counteraction of World Hunger (WHP)
Management of Natural Resources (NRP) | Conference at INCAP with
ICAITI on
"Bio-conversion of Organic Residues for Rural Communities, November 1978, Guatemala |
| WHO | Waste disposal and
possible health
hazards | Preparation of
monographs on
composting and on biogas utilizing night soil |
Sources: S.K. Subramanian, Bio-Gas Systems in Asia, Management Development Institute, New Delhi, 1977; U.N. Agency documents.
Methane is the main constituent of what is popularly known as biogas. A colourless, odourless, inflammable gas, it has been referred to as sewerage gas, klar gas, marsh gas, refuse-derived fuel (RDF), sludge gas, will-o'-the-wisp of marsh lands, fool's fire, gobar gas (cow dung gas), bioenergy, and "fuel of the future." The gas mixture produced is composed roughly of 65 per cent CH4, 30 per cent CO2, and 1 per cent H2S. A thousand cubic feet of processed biogas is equivalent to 600 cubic feet of natural gas, 6.4 gallons of butane, 5.2 gallons of gasoline, or 4.6 gallons of diesel oil. For cooking and lighting, a family of four would consume 150 cubic feet of biogas per day, an amount that is easily generated from the family's night soil and the dung of three cows. In addition, rural housewives using the biofuel are spared the irritating smoke resulting from the combustion of firewood, cattle dung cakes, and the detritus of raw vegetables (Figure 1).

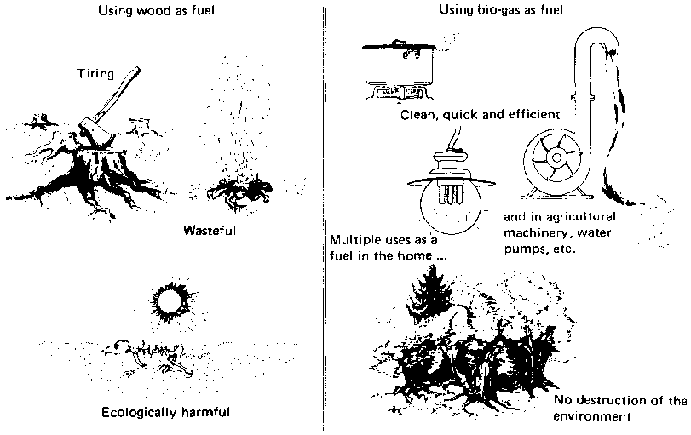

Figure. 1. The Attributes of Biogas as a Fuel vs.
the Disadvantages of Wood (Source: Bio-Gas Newsletter, August
1976)
Anaerobic digestion technology or the methane-generating bioconversion yields both fuel (biogas) and organic fertilizer (sludge), products that are the final result of microbial action on cellulosic and other non-chemically processed organic residues. These substrates are obtained through a series of degradative steps that involve a variety of bacteria (6 11). In the first step, complex polymeric organic substrates - proteins, carbohydrates, and fats - are transformed by non-methanogenic bacteria into essentially non-methanogenic substrates like butyrate, propionate, lactate, and alcohol. Through a second step that involves the acetogenic bacteria, the composition and identity of which still remain to be determined, these compounds are transformed into methanogenic substrates, i.e., acetate, H2 and C1 compounds that are converted into CH4 and CO2 by the methane bacteria, obligate anaerobes that multiply in a neutral or slightly alkaline environment.
That the smooth cooperation of the three groups of bacteria has to be well regulated is exemplified by Bryant's discovery (12) of two mutually inter-dependent species existing in a symbiotic association that was formerly considered a pure culture under the name of Methanobacillus omelianskii. The association is comprised of two symbionts: an acetogenic organism and a methanogenic organism. The acetogen produces acetate and H2 and CO2, thereby disrupting the process of auto-inhibition with the acetogen, which succumbs to the H2 it produces.
Again, it is necessary that both aspects of the anaerobic digestion process - liquefaction and gasification - be well balanced. If the methane bacteria are absent, the digestion process may only succeed in liquefying the material and may render it more offensive than the original material. On the other hand, if liquefaction occurs at a faster rate than gasification, the resultant accumulation of acids may inhibit the methane bacteria and the bioconversion process as well.
The biogas plant consists of two components: a digester (or fermentation tank) and a gas holder. The digester is a cube-shaped or cylindrical waterproof container with an inlet into which the fermentable mixture is introduced in the form of a liquid slurry. The gas holder is normally an airproof steel container that, by floating like a ball on the fermentation mix, cuts off air to the digester (anaerobiosis) and collects the gas generated. In one of the most widely used designs (Figure 2), the gas holder is equipped with a gas outlet, while the digester is provided with an overflow pipe to lead the sludge out into a drainage pit.

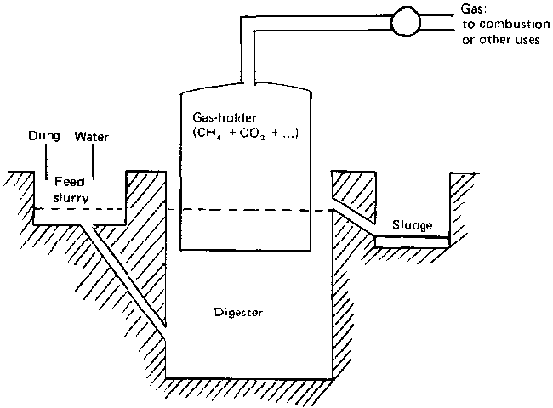

Figure. 2. Diagram of Gobar-Gas Plant Used to
Obtain Methane from Dung by Anaerobic Fermentation (After Prasad et al. [20]1
The construction, design, and economics of biogas plants have been dealt with in the literature (13 - 21). For biogas plant construction, important criteria are: (a) the amount of gas required for a specific use or uses, and lb) the amount of waste material available for processing. Fry (17)
Singh (21), and others (1, 3) have documented several guidelines for consideration in the designing of batch (periodic feeding) and continuous (daily feeding) compartmentalized and non-compartmentalized biogas plants that are of either the vertical or horizontal type. In addition, Loll (18) has recently dealt with the scientific principles, process engineering, and shapes of digestion reactors, and with the economics of the technology.
Digester reactors are constucted from brick, cement, concrete, and steel. In Indonesia, where rural skills in brick making, brick laying, plastering, and bamboo craft are well established, clay bricks have successfully replaced cement blocks and concrete. In areas where the cost is high, the "sausage" or bag digester (14) appears to be ideal (Figure 3). The digester is constructed of 0.55 mm thick Hypalon laminated with Neoprene and reinforced with nylon. The bag is fitted with an inlet and an outlet made from PVC. Even if imported from the United States, the cost of the digester and the gas holder (both combined in one bag) is only 10 per cent of that for a concrete-steel digester. Another advantage is that it can be mass produced and is easily mailed. In rural areas, the whole installation is completed in a matter of minutes. A hole in the ground accommodates the bag, which is filled two-thirds full with waste water. Gas production fully inflates the bag, which is weighted down and fitted with a compressor to increase gas pressure.

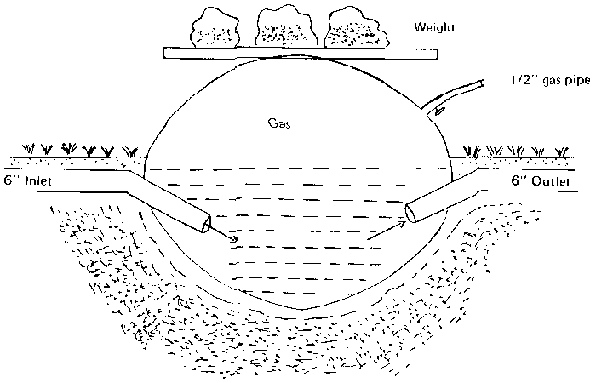

Figure. 3. Diagrammatic Sketch of the
"Sausage" Bag Digester Made of Hypalon Laminated with
Neoprene
Raw Materials (19)
Raw materials may be obtained from a variety of sources - livestock and poultry wastes, night soil, crop residues, food-processing and paper wastes, and materials such as aquatic weeds, water hyacinth, filamentous algae, and seaweed. Different problems are encountered with each of these wastes with regard to collection, transportation, processing, storage, residue utilization, and ultimate use. Residues from the agricultural sector such as spent straw, hay, cane trash, corn and plant stubble, and bagasse need to be shredded in order to facilitate their flow into the digester reactor as well as to increase the efficiency of bacterial action. Succulent plant material yields more gas than dried matter does, and hence materials like brush and weeds need semi-drying. The storage of raw materials in a damp, confined space for over ten days initiates anaerobic bacterial action that, though causing some gas loss, reduces the time for the digester to become operational.
Influent Solids Content (16, 19, 21)
Production of biogas is inefficient if fermentation materials are too dilute or too concentrated, resulting in, low biogas production and insufficient fermentation activity, respectively. Experience has shown that the raw-material (domestic and poultry wastes and manure) ratio to water should be 1:1, i.e., 100 kg of excrete to 100 kg of water. In the slurry, this corresponds to a total solids concentration of 8 - 11 per cent by weight.
Loading (14, 19)
The size of the digester depends upon the loading, which is determined by the influent solids content, retention time, and the digester temperature. Optimum loading rates vary with different digesters and their sites of location. Higher loading rates have been used when the ambient temperature is high. In general, the literature is filled with a variety of conflicting loading rates. In practice, the loading rate should be an expression of either (a) the weight of total volatile solids (TVS) added per day per unit volume of the digester, or (b) the weight of TVS added per day per unit weight of TVS in the digester. The latter principle is normally used for smooth operation of the digester.
Seeding (14, 19)
Common practice involves seeding with an adequate population of both the acid-forming and methanogenic bacteria. Actively digesting sludge from a sewage plant constitutes ideal "seed" material. As a general guideline, the seed material should be twice the volume of the fresh manure slurry during the start-up phase, with a gradual decrease in amount added over a three-week period. If the digester accumulates volatile acids as a result of overloading, the situation can be remedied by reseeding, or by the addition of lime or other alkali.
pH (14, 19)
Low pH inhibits the growth of the methanogenic bacteria and gas generation and is often the result of overloading. A successful pH range for anaerobic digestion is 6.0 - 8.0; efficient digestion occurs at a pH near neutrality. A slightly alkaline state is an indication that pH fluctuations are not too drastic. Low pH may be remedied by dilution or by the addition of lime.
Temperature (13,14,19, 21)
With a mesophilic flora, digestion proceeds best at 30 - 40 C; with thermophiles, the optimum range is 50 - 60 C. The choice of the temperature to be used is influenced by climatic considerations In general, there is no rule of thumb, but for optimum process stability, the temperature should be carefully regulated within a narrow range of the operating temperature. In warm climates, with no freezing temperatures, digesters may be operated without added heat. As a safety measure, it is common practice either to bury the digesters in the ground on account of the advantageous insulating properties of the soil, or to use a greenhouse covering. Heating requirements and, consequently, costs, can be minimized through the use of natural materials such as leaves, sawdust, straw, etc., which are composted in batches in a separate compartment around the digester,
Nutrients (13,17,19, 21)
The maintenance of optimum microbiological activity in the digester is crucial to gas generation and consequently is related to nutrient availability. Two of the most important nutrients are carbon and nitrogen and a critical factor for raw material choice is the overall C/N ratio.
Domestic sewage and animal and poultry wastes are examples of N-rich materials that provide nutrients for the growth and multiplication of the anaerobic organisms. On the other hand, N-poor materials like green grass, corn stubble, etc., are rich in carbohydrate substances that are essential for gas production. Excess availability of nitrogen leads to the formation of NH3, the concentration of which inhibits further growth. Ammonia toxicity can be remedied by low loading or by dilution. In practice, it is important to maintain, by weight, a C/N ratio close to 30:1 for achieving an optimum rate of digestion. The C/N ratio can be judiciously manipulated by combining materials low in carbon with those that are high in nitrogen, and vice versa.
Toxic Materials (13,14,19)
Wastes and biodegradable residue are often accompanied by a variety of pollutants that could inhibit anaerobic digestion. Potential toxicity due to ammonia can be corrected by remedying the C/N ratio of manure through the addition of shredded bagasse or straw, or by dilution. Common toxic substances are the soluble salts of copper, zinc, nickel, mercury, and chromium. On the other hand, salts of sodium, potassium, calcium, and magnesium may be stimulatory or toxic in action, both manifestations being associated with the cation rather than the anionic portion of the salt. Pesticides and synthetic detergents may also be troublesome to the process.
Stirring (13,14,17 - 19, 21)
When solid materials not well shredded are present in the digester, gas generation may be impeded by the formation of a scum that is comprised of these low-density solids that are enmeshed in a filamentous matrix. In time the scum hardens, disrupting the digestion process and causing stratification. Agitation can be done either mechanically with a plunger or by means of rotational spraying of fresh influent. Agitation, normally required for bath digesters, ensures exposure of new surfaces to bacterial action, prevents viscid stratification and slow-down of bacterial activity, and promotes uniform dispersion of the influent materials throughout the fermentation liquor, thereby accelerating digestion.
Retention Time (19, 21)
Other factors such as temperature, dilution, loading rate, etc., influence retention time. At high temperature bio-digestion occurs faster, reducing the time requirement. A normal period for the digestion of dung would be two to four weeks.
Two years ago, the Economic and Social Council of the United Nations adopted a survey, presented in 1978 to the Committee on Science and Technology for Development, listing the on-going research and development in unconventional sources of energy. From the point of view of the developing countries, it is heartening to note that the "use of farm wastes to produce methane" has also been identified in the United Nations World Plan of Action for the Application of Science and Technology to Development.
The Economic and Social Council for Asia and the Pacific, moreover, adopted the Colombo Declaration at its thirtieth session, which determined that the most urgent priorities for action are in the fields of food, energy, raw materials, and fertilizers, and that these priorities would be best met by the integrated biogas system (IBS).
An integrated system aims at the facile generation of fertilizer and acquisition of energy, production of protein via the growth of algae and fish in oxidation ponds, hygienic disposal of sewage and other refuse, and is a tangible effort to counteract environmental pollution. The heart of the system is the biogas process; it has the potential to "seed" self-reliance in relatively primitive economies (14, 22, 23). Allied benefits include the development of rural industry, the provision of local job opportunities, and the progressive eradication of hunger and poverty (Figures 4 - 7).

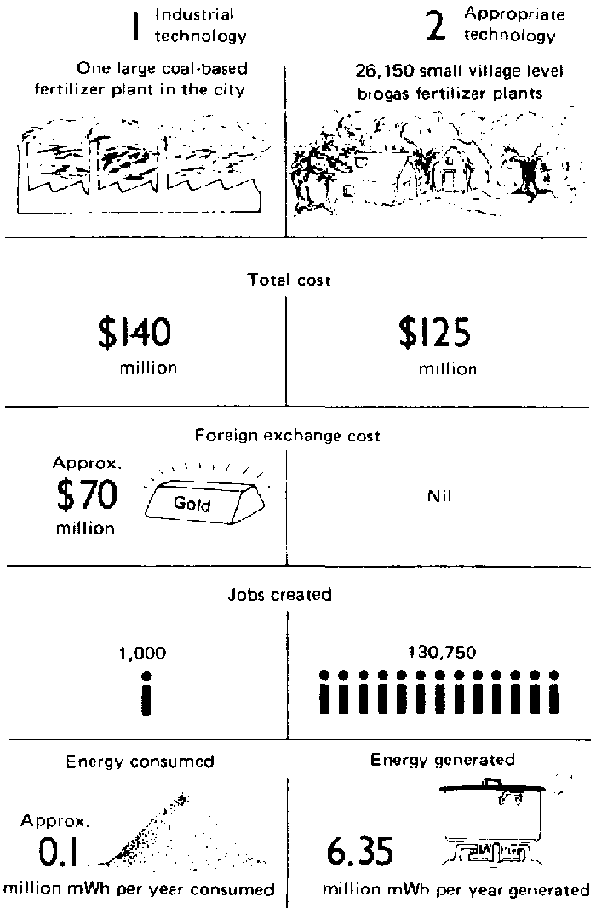

Figure. 4. Two Ways of Increasing Fertilizer
Production Target: 230,000 tons of nitrogen fertilizer per year. (Adapted from
A.K.N. Reddy, Uniterra, Vol. 1, 1976)
Figure. 5. Biogas Cycle in China (Source: FAO
Soils Bulletin 40, Rome, 1977)

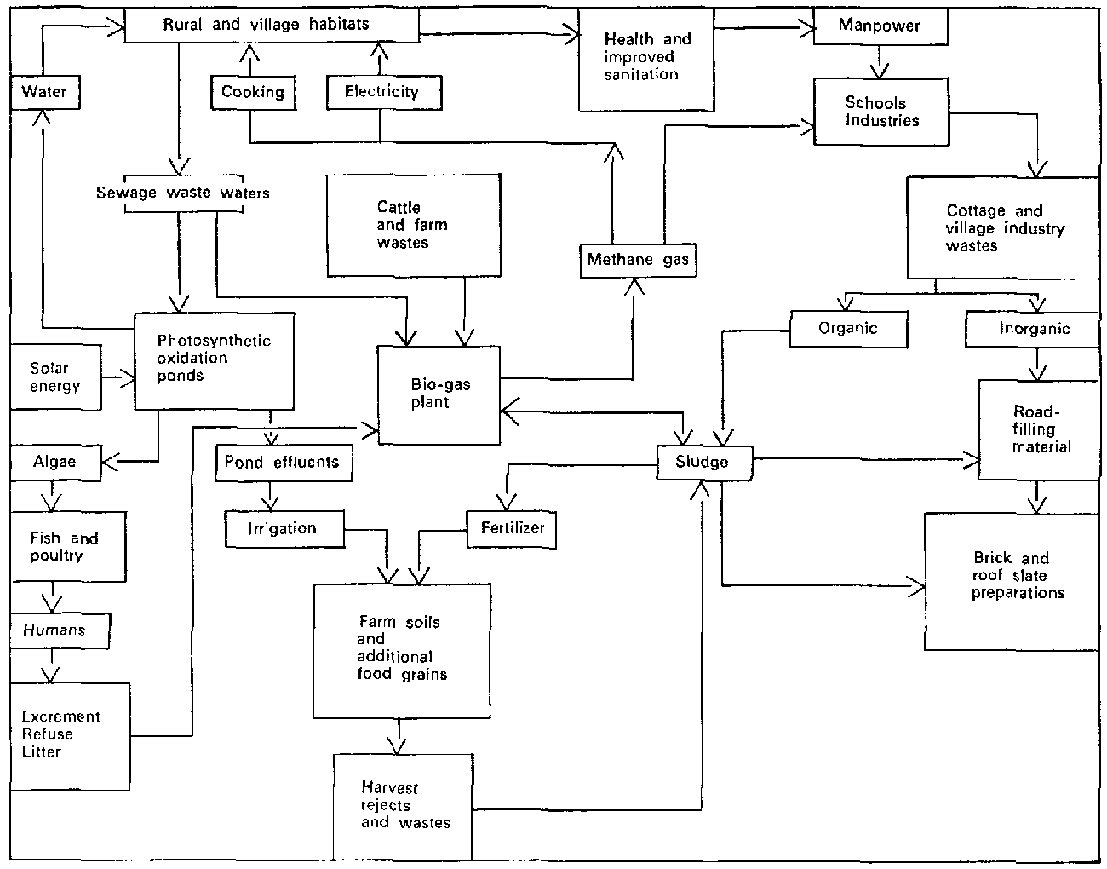

Figure. 6. Interactive Loop of Rural or Village
Farming System Based on Biogas or Methane Economy

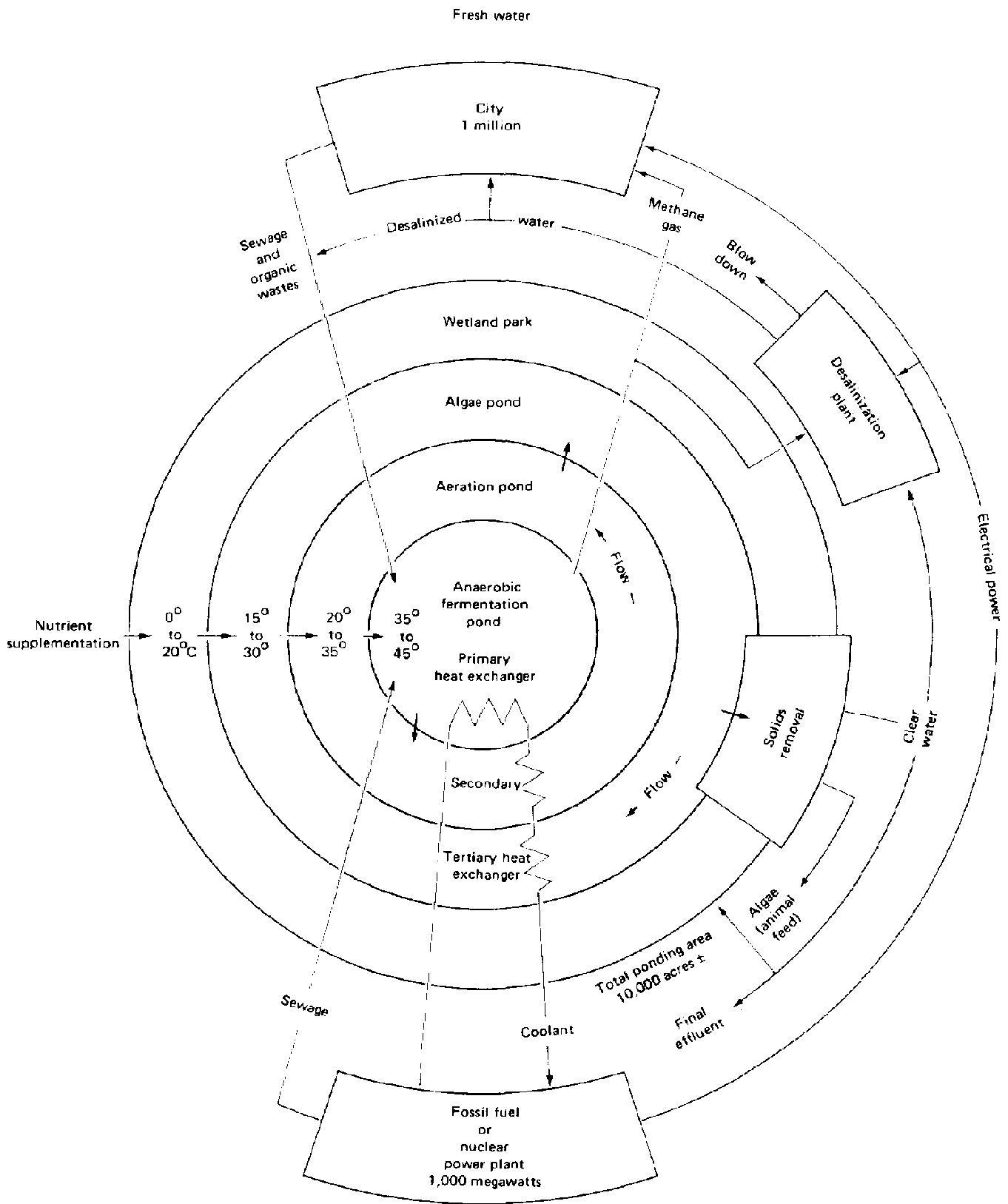

Figure. 7. A Proposed Integrated Nuclear Cooling
and Organic Waste Disposal System (After W. Oswald, University of California)
The coupling of a photosynthetic step (24 - 26) with digestion provides for the transformation of the minerals left by digestion directly into algae that can then be used as fodder, as feed for fish, as fertilizer, or for increased energy production by returning them to the digester process (Figure 8).

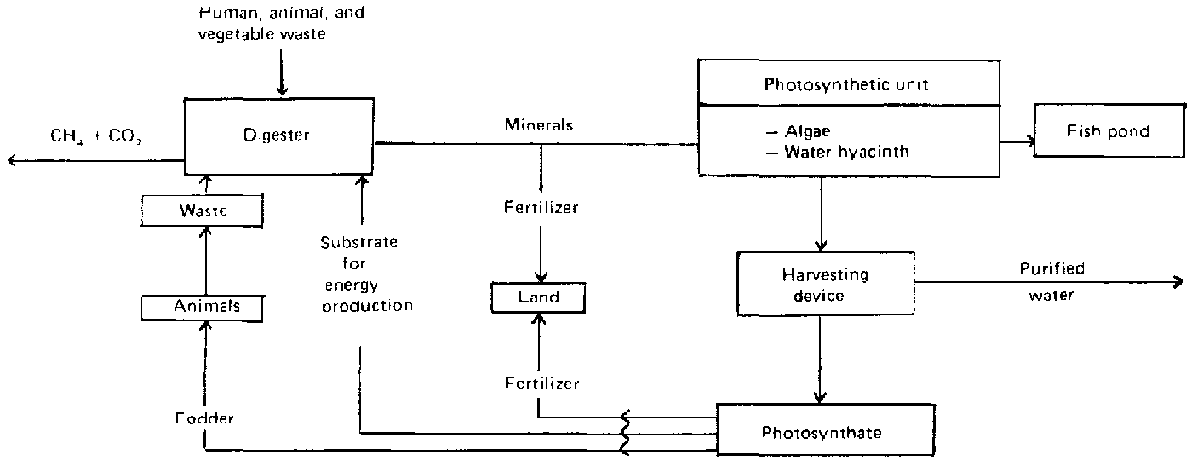

Figure. 8. Simplified Scheme Indicating Various
Combinations of Digestion and Photosynthesis for Fodder, Fertilizer, and Fuel
Production (After J.W.M. LaRivière, J. Sci. Soc., Thailand, 1977)
The IBS aims at putting back into soil and water what has been taken from them, and increasing the amounts of nutrients by fixing CO2 and N2 from the atmosphere into the soil and water through photosynthesis by algae. Involving low cash investments on a decentralized basis, the implementation of IBS provides employment to the whole work force without disruption of the rural structure. Furthermore, it is an apt example of soft technology that does not pollute or destroy the physical environment. At the College of Agriculture of the University of the Philippines, preliminary work on a small scale has begun. In England, an Eco-house (Figure 9) has been built by Graham Caine on the Thames Polytechnical Playing Fields at Eltham, southeast of London. Results on the project, however, are not yet available.
Figure. 9. Graham Caine Eco-House (Reprinted with
permission from Mother Earth News, No. 20 [March 1973], p.
62)
There is no general answer to the economic feasibility of biogas production. National economic considerations play an important role. In Korea, wood is in short supply (27) and domestic fuel substitutes like rice and barley straw, and coal and oil could be conserved; wood could be a foreign-exchange earner in the field of handicrafts. In India, transportation costs of coal and oil to the rural areas is high and an extra burden on an already poor farmer.
The consumption of commercial and non-commercial energy for the whole of India, as determined for the period 1960 - 1971 by the Fuel Policy Committee Report, is provided in Table 3.
TABLE 3. Consumption of Commercial and Non-Commercial Energy in India
| Year | Coal
(Million Tons) | Oil
(Million Tons) | Electricity
(Billion kwh) | Firewood
(Million Tons) | Cow dung
(Million Tons) | Vegetable waste
(Million Tons) |
| 1960 - 61 | 47.1 | 6.75 | 16.9 | 101.04 | 55.38 | 31.08 |
| 1965 - 66 | 64.2 | 9 94 | 30.6 | 111.82 | 61.28 | 34.41 |
| 1970 - 71 | 71 1 | 14 95 | 48.7 | 122.75 | 67.28 | 37.77 |
Sources: Report of the Fuel Policy Committee,1974; S.N. Ghosh, Invention Intelligence 12:63 (1977).
The rural share in the energy consumption of electricity and coal is not considerable because, as the Report of the Panel of the National Committee of Science and Technology on Fuel and Power indicates, the large towns and cities with populations of 500,000 and more accommodate only 6 per cent of India's total population but consume about 50 per cent of the total commercial energy produced in the country.
In the villages, however, kerosene is used for lighting, but it is clear that with increasing population, biogas generation seems to offer solutions in the areas of fuel availability, electricity, fertilizer for cash crops, and would provide other socio-economic benefits.
On the other hand, cost-benefit analyses of methane generation vary widely, depending upon the uses and actual benefits of biogas production, public and private costs associated with the development and utilization of methane, and on the technology used to generate methane. Several factors have been listed in the economics of biogas generation (14, 17 - 19, 28). An appropriate example is the fact that a village-model gas plant, which cost Rs 500 some years ago, cost Rs 1,500 in 1974 and Rs 2,000 in 1977. Hence, a significant problem is whether rural people who cannot spend Rs 2,000 can cope with increasing inflationary and digester construction material costs.
The Khadi and Village Industries Commission has helped to tackle the problem through rural community co-operation and a scheme of subsidies and loans to encourage individual families, groups of families, institutions, and communities to construct biogas plants. An analysis of cost and income for a plant producing 3m³/day is given in Table 4. The net annual income of approximately US$60 shows that the capital investment of US$340 can be recouped in about six years. There are also incidental advantages of hygienic improvement, the absence of smoke and soot in gas burning, convenience in burning, and the increased richness of manure.
TABLE 4. Cost-Benefit Analysis of Khadi and Village Industries Commission Plant (in US dollars)
| a. Capital cost | |
| Gas holder and frame | $ 93.5 |
| Piping and stove | $ 34 7 |
| Civil engineering construction (tank, inlet and outlet, etc.) | $210.1 |
| Total | $338.3 |
| b. Annual expenditure | |
| The interest on investment at 9% | $ 30.4 |
| Depreciation on gas holder and frame at 10% | $ 9.3 |
| Depreciation on piping and stove at 5% | $ 2.0 |
| Depreciation on structure at 3% | $ 6.3 |
| Cost of painting, once a Year | $ 6.7 |
| Total | $ 54,7 |
| c. Annual income | |
| Gas 3m³ per day at $1.5 per 29m³ (1,000 cu.ft.) | $ 50.3 |
| Manure (7 tons, composted) with refuse 16 tons at $4 per ton | $ 64.0 |
| Total | $114.3 |
| d. Net annual income (b - c) | $ 59.6 |
Source: ESCAP Document NR/EGNBD/4, 20 - 26 June 1978
Health hazards are associated with the handling of night soil and with the use of sludge from untreated human excrete as fertilizer.
In general, published data indicate that a digestion time of 14 days at 35 C is effective in killing (99.9 per cent die-off rate) the enteric bacterial pathogens and the enteric group of viruses. However, the die-off rate for roundworm (Ascaris lumbricoides) and hookworm (Ancylostoma) is only 90 per cent, which is still high. In this context, biogas production would provide a public health benefit beyond that of any other treatment in managing the rural health environment of developing countries.
Bioconversion of organic domestic and farm residues has become attractive as its technology has been successfully tested through experience on both small- and large-scale projects. Feeding upon renewable resources and non-polluting in process technology, biogas generation serves a triple function: waste removal, management of the environment, and energy production. Nevertheless, there are still several problems (14, 19, 20) that impede the efficient working of biogas generating systems (Table 5).
TABLE 5. Considerations Relating to Bottlenecks in Biogas Generation
| Aspect | Bottlenecks | Remarks |
| Planning | Availability
and ease of transportation of raw
materials and processed residual products | Use of algae and hydroponic plants offsets high
transportation costs of materials not readily at hand. Easily dried residual products facilitate transportation. |
| Site selection | Nature of subsoil, water table, and
availability of
solar radiation, prevailing climatic conditions, and strength of village population need to be considered. | |
| Financial
contraints: Digester design; high
Transportation costs of digester materials; installation and maintenance costs; increasing labour costs in distribution of biogas products for domestic purposes | Use
of cheap construction materials, emphasizing
low capital and maintenance costs and simplicity of operation; provision of subsidies and loans that are not burdensome. | |
| Necessity to
own or have access to relatively
large number of cattle | Well-planned rural
community development, ownership and biogas distribution schemes
necessary. | |
| Social contraints
and psychological
prejudice against the use of raw materials | Development of publicity programmes to
counteract contraints compounded by illiteracy; provision of incentives for development of small- scale integrated biogas systems. | |
| Technical | Improper preparation of influent solids
leading to blockage and scum formation | Proper milling and other treatment measures (pre-
soaking, adjustment of C/N ratio); removal of inert particles: sand and rocks. |
| Temperature fluctuations | Careful
regulation of temperature through use of
low-cost insulating materials (sawdust, bagasse, grass, cotton waste, wheat straw); incorporation of auxiliary solar heating system. | |
| Maintenance of pH for optimal growth of
Methanogenic bacteria C/N ratio | Appropriate choice of raw
material, regulation of
C/N ratio and dilution rate. Appropriate mixing of N-rich and N-poor substrates with cellulosic substrates. | |
| Dilution ratio of influent solids content | Appropriate treatment of raw materials to avoid
stratification and scum formation. | |
| Retention time of slurry | Dependent
upon dilution ratio, loading rate,
digestion temperature. | |
| Loading rate | Dependent upon digester size, dilution
ratio,
digestion temperature. | |
| Seeding
of an appropriate bacterial
Population for biogas generation | Development of specific and potent cultures. | |
| Corrosion of gas holder | Construction from cheap materials (glass fibre,
clay, jute-fibre reinforced plastic) and/or regular cleaning and layering with protective materials (e.g., lubricating oil). | |
| Pin-hole leakages (digester tank, holder,
inlet, outlet) | Establishment of "no
leak" conditions, use of
external protective coating materials (PVC, creosotes | |
| Occurrence of CO2
reducing calorific
value of biogas | Reduction in CO2 content
through passage in
lime-water | |
| Occurrence of water
condensate in gas
supply system (blockage, rusting) | Appropriate drainage system using condensate
traps | |
| Occurrence of H2S leading to corrosion | On a village scale, H2S removed
by passing over
ferric oxide or iron filings | |
| Improper combustion | Designing of air-gas mixing appliances necessary | |
| Maintenance of gas supply at constant
pressure | Regulation of uniform
distribution and use of gas;
removal of water condensate from piping systems; appropriate choice of gas holder in terms of weight and capacity | |
| Residue
utilization | Risks to health
and plant crops resulting
from residual accumulation of toxic materials and encysted pathogens | Avoid
use of chemical industry effluents; more
research on type, nature, and die-off rates of persisting organisms; minimize long transportation period of un-dried effluent |
| Health | Hazards to
human health in transporting
night soil and other wastes (gray-water) | Linkage of latrine run-offs into biogas reactors
promotes non-manual operations and general aesthetics |
| Safety | Improper handling and storage of methane | Appropriate measures necessary for plant
operation, handling, and storage of biogas through provision of extension and servicing facilities |
Rural communities using the integrated system are appropriate examples of recycled societies that benefit from low-capital investments on a decentralized basis and such communities are attuned to the environment. The technology thus seeded and spawned is, in essence, a populist technology based on "Nature's income and not on Nature's capital."
Biogas generated from locally available waste material seems to be one of the answers to the energy problem in most rural areas of developing countries. Gas generation consumes about one-fourth of the dung, but the available heat of the gas is about 20 per cent more than that obtained by burning the entire amount of dung directly. This is mainly due to the very high efficiency (60 per cent) of utilization compared to the poor efficiency (11 per cent) of burning dung cakes directly.
Several thousand biogas plants have been constructed in developing countries. A screening of the literature indicates that the experience of pioneering individuals and organizations has been the guiding principle rather than a defined scientific approach. Several basic chemical, microbiological, engineering, and social problems have to be tackled to ensure the large-scale adoption of biogas plants, with the concomitant assurances of economic success and cultural acceptance. Various experiences suggest that efficiency in operation needs to be developed, and some important factors are: reduction in the use of steel in current gas plant designs; optimum design of plants, efficient burners, heating of digesters with solar radiation, coupling of biogas systems with other non-conventional energy sources, design of large-scale community plants, optimum utilization of digested slurry, microbiological conversion of CO2 to CH4, improvement of the efficiency of digestion of dung and other cellulosic material through enzyme action and other pre-digestion methods, and anaerobic di gestion of urban wastes
We may summarize some of the research and development tasks that need to be undertaken as follows.
In basic research:
a. Studies on the choice, culture, and management of the micro-organisms involved in the generation of methane.
b. Studies on bacterial behaviour and growth in the simulated environment of a digester (fermentation components: rate, yield of gas, composition of gas as a function of variables - pH, temperature, agitation - with relation to substrates - manure, algae, water hyacinths).
In applied research:
a. Studies on improving biogas reactor design and economics focusing on: alternative construction materials in stead of steel and cement; seeding devices; gas purification methods; auxiliary heating systems; insulator materials; development of appropriate appliances for efficient biogas utilization (e.g. burners, lamps, mini tractors, etc.).
b. Studies for determining and increasing the traditionally acknowledged fertilizer value of sludge.
c. Studies on quicker de-watering of sludge.
d. Studies on deployment of methane to strengthening small-scale industries, e.g., brick-making, welding, etc.
In social research:
a. Effective deployment of the written, spoken, and printed word in overcoming the social constraints to the use of biogas by rural populations.
b. Programmes designed to illustrate the benefits accruing to rural household and community hygiene and health.
c. Programmes designed to illustrate the need for proper management of rural natural resources and for boosting rural crop yields in counteracting food and feed unavailability and insufficiency.
d. On-site training of extension and technical personnel for field-work geared to the construction, operation, maintenance, and servicing of biogas generating systems.
e. Involvement and training of rural administrative and technical personnel in regional, national, and international activities focusing on the potentials and benefits of integrated biogas systems.
Table 6 shows a number of the benefits of biogas utilization, set against the related drawbacks of presently used alternatives.
| Present problems | Benefits of Biogas |
| Depletion of forests for firewood and causation of
ecological imbalance and climatic changes | Positive impact on deforestation; relieves a portion of the
labour force from having to collect wood and transport coal; helps conserve local energy resources |
| Burning of dung cakes: source of environmental
pollution; decreases inorganic nutrients; night soil transportation a hazard to health | Inexpensive solution to problem of rural fuel shortage;
improvements in the living and health standards of rural and village communities; provides employment opportunities in spin-off small-scale industries |
| Untreated manure, organic wastes, and
residues lost as
valuable fertilizer | Residual
sludge is applied as top-dressing; good soil
conditioner; inorganic residue useful for land reclamation |
| Untreated refuse and organic wastes a direct threat to health | Effective
destruction of intestinal pathogens and parasites;
end-products non-polluting, cheap; odours non-offensive |
| Initial high cost resulting from installation, maintenance, storage, and distribution costs of end-products | System pays for itself |
| Social constraints and psychological
prejudice to use
of human waste materials | Income-generator and apt example of self-reliance and self-
sufficiency |
1. J.W.M. LaRivière and E.J. DaSilva, "Farming Microbes for Food, Fuel and Fibre," Unesco Courier, June 1978.
2. J.R. Porter, "Microbiology and the Food and Energy Crises," Amer. Soc. Microbiol. News 40: 813 11974).
3. J.R. Porter, "Microbiology and the Disposal of Solid Wastes," Amer. Soc. Microbial. News 40:826 (1974).
4. J.R. Porter, "Micro-organisms as Natural Resources for Food and Energy," presented to the Asian Regional Seminar on Contributions of Science and Technology to National Development, New Delhi, 4 - 6 October 1978.
5. E.J. DaSilva, R. Olembo, and A. Burgers, "Integrated Microbial Technology for Developing Countries: Springboard for Economic Progress," Impact Sci. Soc. 28: 159 (1978).
6. M.P. Bryant, in H.G. Schlegel and J. Barnea (eds.) Microbial Energy Conversion, pp. 399 412, Erich Gottze KG, Gottingen, W. Germany, 1976.
7. J.W.M LaRiviere, "Microbial Ecology of Liquid Waste Treatment," Adv. Microbial Ecol. 1: 215 (1977).
8. J.W.M. LaRiviere, "Microbiological Production of Methane from Waste Materials," J. Sci. Soc. Thailand 3: 5 11977).
9. D,F. Torien, W.H.J. Hattingh, J.P. Kotze, P.G. Thiel, W.A. Pretorius, G.G. Cillie, M.R, Henzen, G.J. Stander, and R.D. Baillie, "Anaerobic Digestion - Review Paper," Water Res. 3: 385 (1);459111);5451111); 623 (IV) 11969).
10. D.F. Torien and J.P. Kotzé, "Population Description of the Non-Methanogenic Phase of Anaerobic Digestion," Water Res. 4:129 (i); 285 111); 305 (III); 315 (IV) 11970).
11. R.S. Wolfe, "Microbial Formation of Methane," Adv. Microbiol. Physiol. 6:107 (1971).
12. M.P. Bryant, E.A. Wolin, M,J. Wolin, and R.S. Wolfe, "Methanobacillus omelianskii, a Symbiotic Association of Two Species of Bacteria," Arch. Mikrobiol. 59: 20 (1967).
13. C. Bell, S. Boulter, D, Dunlop, and P. Keiller, Methane: Fuel of the Future, Andrew Singer, Cambridgeshire, U.K., 1973.
14. ESCAP Document RAS/74/041/A/01/01, "Biogas Technology and Utilization," ESCAP, Bangkok, 1975.
15. T.D, Biswas, "Biogas Plants: Prospects and Limitations," Invention Intelligence 12: 71 (1977).
16. M.J. McGarry and J. Stainforth, Compost, Fertilizer and Biogas Production in the People's Republic of China, p, 94, International Development Research Centre, Ottawa, IDRC-TS8e, 1978.
17. L.G. Fry, Practical Building of Methane Power Plants for Rural Energy Independence, L.G. Fry, Santa Barbara, California, 1 974.
18. U. Loll, in H.G. Schiegel and J. Barnea (eds.), Microbial Conversion, pp. 361 - 378, Erich Gottze KG, Gottingen, W. Germany, 1976.
19. National Academy of Sciences, Methane Generation from Human, Animal and Agricultural Wastes, NTIS Accession No. PB-276-469, NAS, Washington, D.C., 1977.
20. C. Prasad, N. Prasad, and A. Reddy, "Big-gas Plants: Prospects, Problems and Tasks," Economic and Political Weekly 9: 1347 (1974).
21. R.B. Singh, Bio-gas Plant: Generating Methane from Organic Wastes, Gobar-Gas Research Station, Ajitmal, Etawah, India, 1971.
22. E.J. DaSilva, A. Burgers, and R. Olembo, "Health and Wealth from Waste; an Economic Incentive for Developing Countries," Impact Sci. Soc. 26: 323 (1976).
23. J. Tinbergen, Reshaping the International Order: A Report to the Club of Rome, E.P. Dutton, New York, 1976.
24. J.R. Benemann, J.C. Weissman, B.L. Koopman, and W.J. Oswald, "Energy Production by Microbial Photosynthesis," Nature 268: 19 (1977).
25. A. Fernandez, Gobar-Gas Plant - How and Why, Seva Vani, May - June 1976.
26. G. Shelef, R. Moraine, A. Meydan, and E. Sandbank, in H.G. Schlegel and J. Barnea (eds.), Microbial Energy Conversion, pp. 427 - 442. Erich Gottze KG, Gottingen, W. Germany, 1976.
27. E.P. Eckholm, "The Energy Crisis: Firewood," World Watch Paper 1, Worldwatch Institute, Washington, D.C., 1975.
28. J. Parikh and K. Parikh, in H. G. Schlegel and J. Barnea (eds.), Microbial Energy Conversion. pp. 555 - 591, Erich Gottze KG, Gottingen, W. Germany, 1976.
The question arose as to whether retention time in the biogas fermentation could be reduced by mixing. There seems to be very little in the literature on the subject, and, although information is now becoming available from the United States National Academy of Sciences and the Economic and Social Commission for Asia and the Pacific (ESCAPI, much more is needed. There is a great deal of information on domestic sludge, and it is now possible to treat dissolved residues, e.g., potato, in continuous anaerobic processes.
 |
 |
