12. PRODUCTION OPTIONS

There is a wide range of possible configurations for the soap manufacturing line, as summarised in the table below. The main production options are dependent on:

Parameters

1. the raw material resources

cost, quality and nature of the oils and fats, security of supply, etc.

2. the commercial objectives

type of soap, target clientele, competition, sales volumes and prices, economic and commercial environment (tariff barriers, fierceness of competition)

3. the operational, economic, and financial constraints

size of the investment, availability and cost of production factors (water, energy, labour), existence of maintenance workshops, spare parts, access to technical support, quality of management.

An evaluation of these various parameters is essential because it determines which kind of production facility should be established to meet the company's objectives in terms of:

® production capacity
® degree of finishing desired for the end product(s) (high grade against low grade)
® flexibility of production (mass production against production of a wide range of different soaps)
® degree of intervention of the workforce in the manufacturing process/automation.

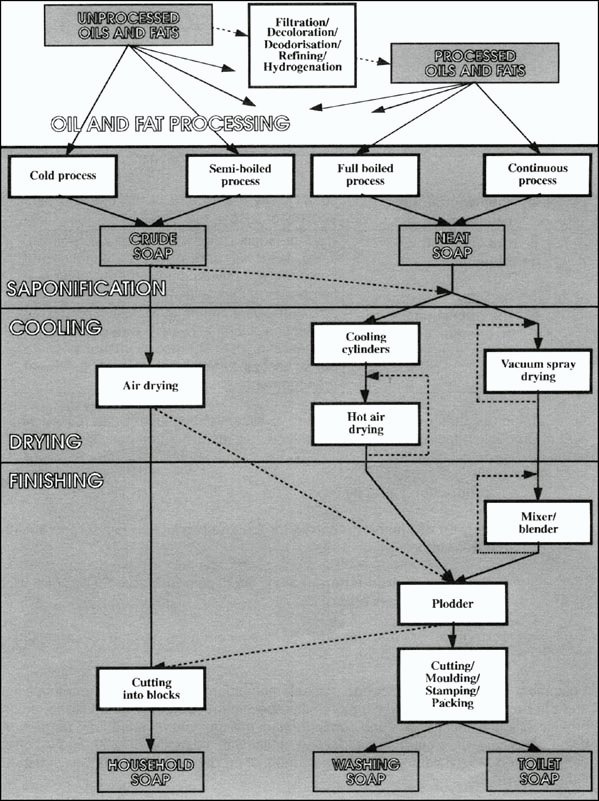

Equipment suppliers have a range of basic equipment which allows them to design and offer a production line which meets the specific requirements of any soap factory project. The possible options and configurations are many and varied, and range from cottage-industry or semi-rural production units with capacity of 250 kg/h - often containerised - to fully automated units capable of producing up to 10,000 kg/h (i.e. 40 times more).

Figure

	Parameters
1. the raw material resources	cost, quality and nature of the oils and fats, security of supply, etc.
2. the commercial objectives	type of soap, target clientele, competition, sales volumes and prices, economic and commercial environment (tariff barriers, fierceness of competition)
3. the operational, economic, and financial constraints	size of the investment, availability and cost of production factors (water, energy, labour), existence of maintenance workshops, spare parts, access to technical support, quality of management.
